APPLICATIONS

CMI Novacast PG Series Electromagnetic Pump Applications for Aluminum and Zinc

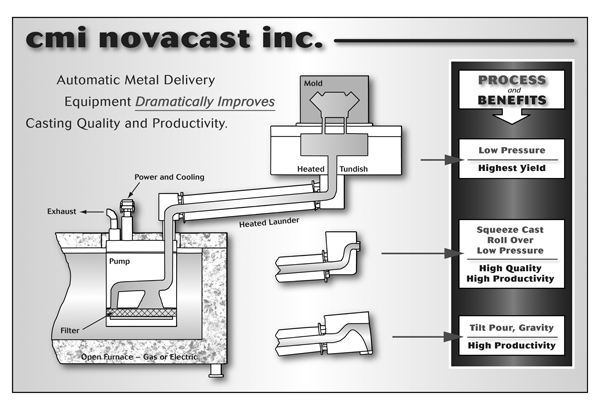

The launder/tundish system for the PG series pumps can be specifically engineered for gravity or low-pressure feeding into permanent mold, green or chemically-bonded sand, evaporative pattern, investment or plaster molds. Additionally, the PG series can pump precise quantities of molten metal into shot sleeves of squeeze cast or high pressure dies. There are several methods that can be utilized to fill molds. Click on any image below to enlarge.



Low Pressure Bottom Fill

Green or chemically-bondedsand molds

Green or chemically-bondedsand molds

High pressure die castingshot sleeves

High pressure die castingshot sleeves

Squeeze casting shot sleeves

Squeeze casting shot sleeves


Low Pressure Side Fill

Green or chemically-bonded sand molds

Green or chemically-bonded sand molds

High pressure die casting shot sleeves

High pressure die casting shot sleeves

Green or chemically-bonded sand rollover molds

Green or chemically-bonded sand rollover molds


Gravity Pour

Green or chemically-bonded sand molds

Green or chemically-bonded sand molds

High pressure die casting shot sleeves

High pressure die casting shot sleeves

Permanent mold machines pouring cup

Permanent mold machines pouring cup
