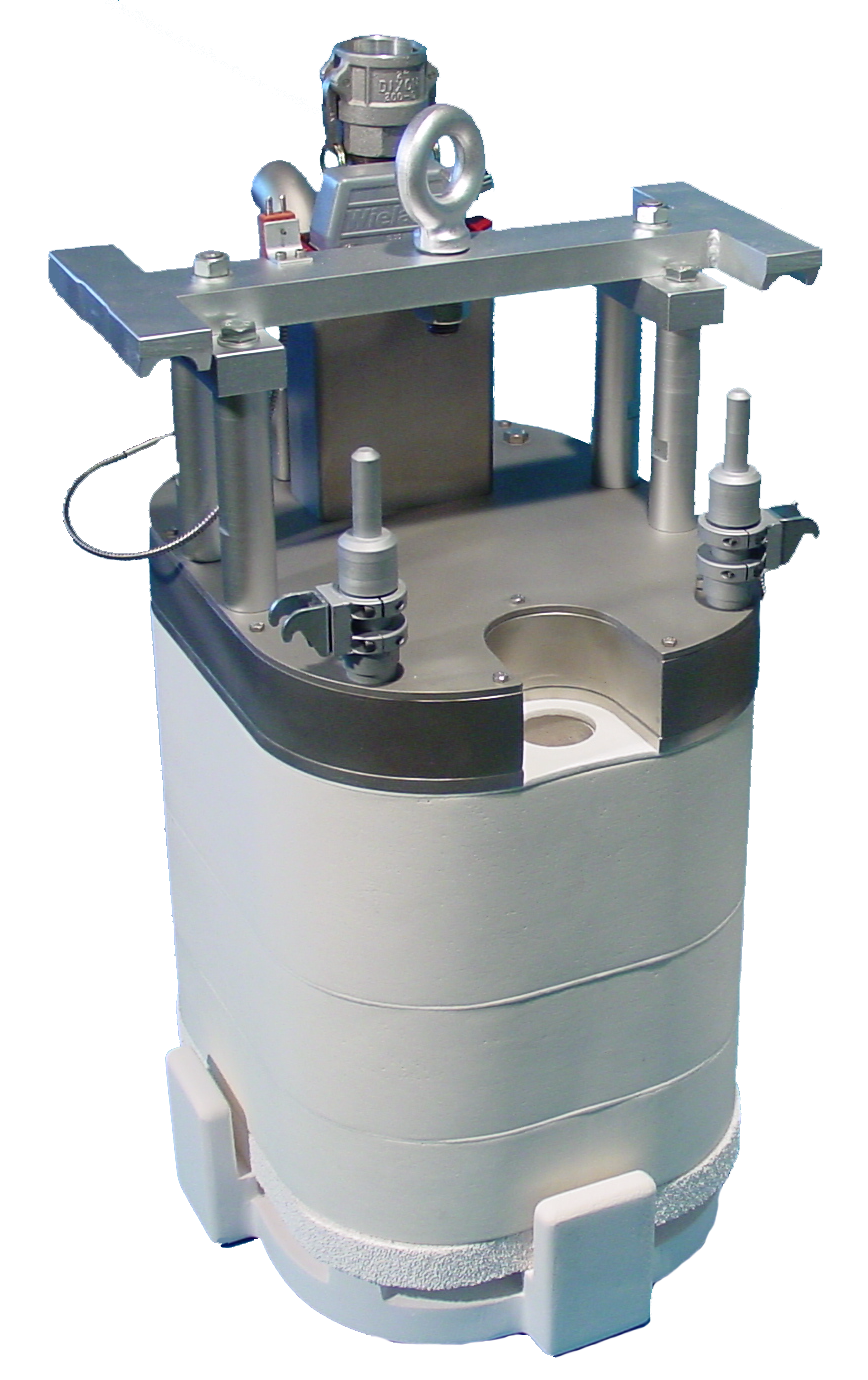

The high performance PG 450 electromagnetic (EM) liquid metal pump is larger than the CMI Novacast PG 300. The typical molding rate for the rollover scheme is up to 90 castings per hour and up to 200 castings per hour for low-pressure bottom filling – primarily for aluminum but also for silicon carbide composites and zinc.
Our engineers can integrate EM pumps to fit your casting automation needs, starting with a feasibility study that will quantify the potential impact, ROI and payback period of using CMI Novacast EM pumps at your foundry.
General Specifications for Aluminum
- Head Pressure – Sustained: 87 in. (2.2 m)
- Head Pressure – Peak: 98 in. (2.5 m)
- Maximum Flow Rate: 22 lbs./sec. (10 kg./sec.)
- Minimum Well Size: 24 x 20 x 22 in. deep (0.6 x 0.5 x 0.56 m deep)
- Power Requirements: 0-14 kW, 380/480 Volts, 50/60 Hz
- Furnace Type: Gas or Electric
- Cooling Air: System supplied by CMI Novacast
- Ideal for high capacity casting: >20m lbs. per year for stack melters
